LN45

Name: Office Linear 501
Brand: AUTRON
Availability: InStock

APPLICATIONS: Commercial | Retail | Residential

Durable and weather-resistant construction.

Multiple CCT and color options including RGB.

IP65 protection rating for outdoor use.

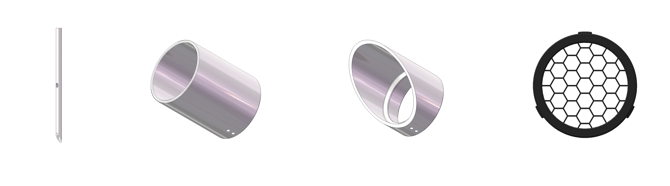

Accessories: ground spike, sleeve, angled sleeve, honeycomb louver.

Flicker

Free

DALI

Luminaire Specification

Input Voltage24V

IP Rating65

Wattage (W)5 / 10

Dimension (mm)D45 x 80

CCT2700 / 3000 / 3500 / 4000 / 5000 / RGB

FinishWhite / Black / Natural Anodized

Beam Angle15° / 24° / 36° / 50°

InstallationGround Mount

CRI80 / 90

Warranty5 years

ControlOn/Off / Triac / 1-10V / DALI / Casambi

Datasheet

Product Code	Wattage (W)	Lumen Output (lm)	Efficacy (lm/W)	CCT (K)	CRI	Downloads
LN450582715D	5	300	60	2700	80	IES
LN450582724D	5	310	62	2700	80	IES
LN450583015D	5	310	62	3000	80	IES
LN450583024D	5	320	64	3000	80	IES
LN450584015D	5	320	64	4000	80	IES
LN450584024D	5	330	66	4000	80	IES
LN450592715D	5	280	56	2700	90	IES
LN450592724D	5	290	58	2700	90	IES
LN450593015D	5	290	58	3000	90	IES
LN450593024D	5	300	60	3000	90	IES
LN450594015D	5	300	60	4000	90	IES
LN450594024D	5	310	62	4000	90	IES
LN451082715D	10	600	60	2700	80	IES
LN451082724D	10	620	62	2700	80	IES
LN451083015D	10	620	62	3000	80	IES
LN451083024D	10	640	64	3000	80	IES
LN451084015D	10	640	64	4000	80	IES
LN451084024D	10	660	66	4000	80	IES
LN451092715D	10	560	56	2700	90	IES
LN451092724D	10	580	58	2700	90	IES
LN451093015D	10	580	58	3000	90	IES
LN451093024D	10	600	60	3000	90	IES
LN451094015D	10	600	60	4000	90	IES
LN451094024D	10	620	62	4000	90	IES

* Special Order

We support multi-dimensional customization including power, color temperature, and dimming protocols. Welcome to inquire.
