372H
APPLICATIONS: Commercial | Retail | Residential
- The Razor series offers high-efficiency illumination with a sleek, modern design.
- With superior lighting performance and versatile mounting options, it adapts to various applications.
- Dimming controls provide flexibility and enhanced user experience.
- A long lifespan ensures reliable and customizable lighting solutions.
IP
20
Flicker
Free
DALI
2
Luminaire Specification
Model372H
CCT2700 / 3000 / 3500 / 4000 / 5000
Beam Angle110°
CRI80 / 90
SDCM< 3
Lifetime50,000 hrs
ControlPhase Cut / 0-10V / DALI / Casambi
IP Rating20

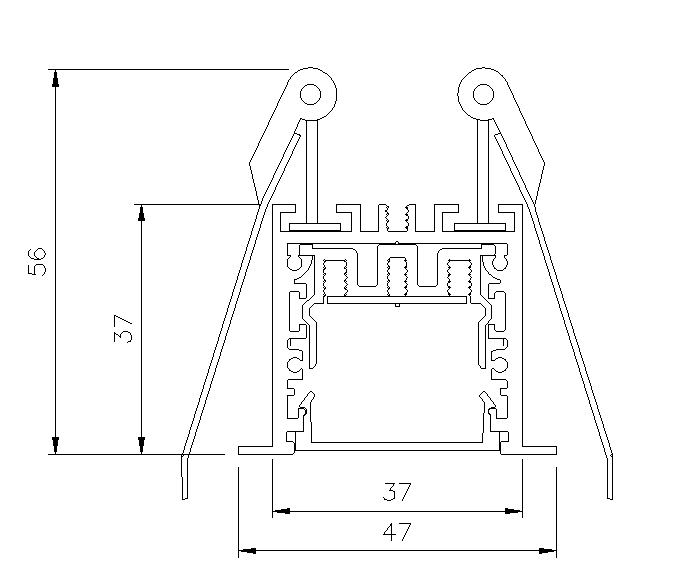

Dimension (mm)47(W) x 37(H)
Cutout (mm)37
FinishWhite / Black / Natural Anodized
InstallationRecessed
Warranty5 years
Details
Datasheet| Product Code | Wattage (W) | Lumen Output (lm) | 光效 (lm/m) | CCT (K) | CRI | Downloads |
|---|---|---|---|---|---|---|
| 372H827 | 18.2 | 2005 | 110.1 | 2700 | 80 | IES |
| 372H830 | 18.2 | 2099 | 115.3 | 3000 | 80 | IES |
| 372H835 | 18.2 | 2160 | 118.7 | *3500 | 80 | IES |
| 372H840 | 18.2 | 2220 | 122 | 4000 | 80 | IES |
| 372H850 | 18.2 | 2220 | 122 | *5000 | 80 | IES |
| 372H927 | 20.3 | 2072 | 102.1 | 2700 | 90 | IES |
| 372H930 | 20.3 | 2139 | 105.4 | 3000 | 90 | IES |
| 372H935 | 20.3 | 2193 | 108.1 | *3500 | 90 | IES |
| 372H940 | 20.3 | 2220 | 109.4 | 4000 | 90 | IES |
| 372H950 | 20.3 | 2220 | 109.4 | *5000 | 90 | IES |
* Special Order
Customization Support
We support multi-dimensional customization including power, color temperature, length, and dimming protocols. Welcome to inquire.
