202 S
APPLICATIONS: Commercial | Retail | Residential
- 202S | 20 Series Recessed Linear Light - A slim 20mm recessed linear lighting system, multiple CCT and color options, supporting custom length and recessed installation.
Slim linear profile
Multiple CCT and color temperature options

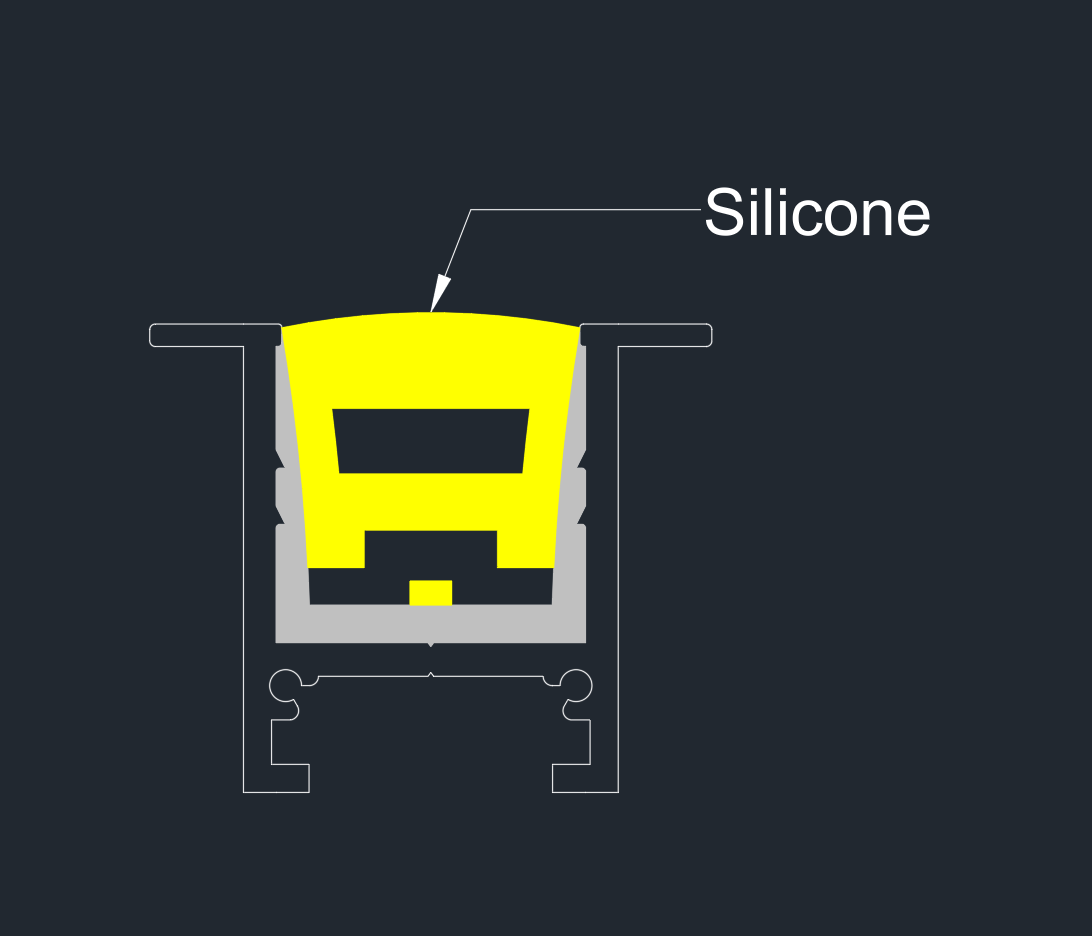

Compatible with 1614 silicone LED strip
Luminaire Specification
Model202S
Dimension20×25mm
LengthCustom
Voltage24V DC/AC
IP Rating65
ControlPhase Cut / 0-10V / DALI / Casambi
InstallationRecessed
CoverNA PC
Surface FinishWhite / Black / Natural Anodized
Details
Datasheet| Product Code | Wattage (W) | Lumen Output (lm) | 光效 (lm/m) | CCT (K) | CRI | Downloads |
|---|---|---|---|---|---|---|
| 202S827 | 20 | 850 | 1270 | 2700 | 80 | IES |
| 202S830 | 20 | 880 | 1340 | 3000 | 80 | IES |
| 202S835 | 20 | 900 | 1340 | *3500 | 80 | IES |
| 202S840 | 20 | 920 | 1420 | 4000 | 80 | IES |
| 202S850 | 20 | 920 | 1420 | *5000 | 80 | IES |
| 202S860 | 20 | 900 | 1420 | 6000 | 80 | IES |
* Special Order
Customization Support
We support multi-dimensional customization including power, color temperature, length, and dimming protocols. Welcome to inquire.
