502
APPLICATIONS: Commercial | Retail | Residential

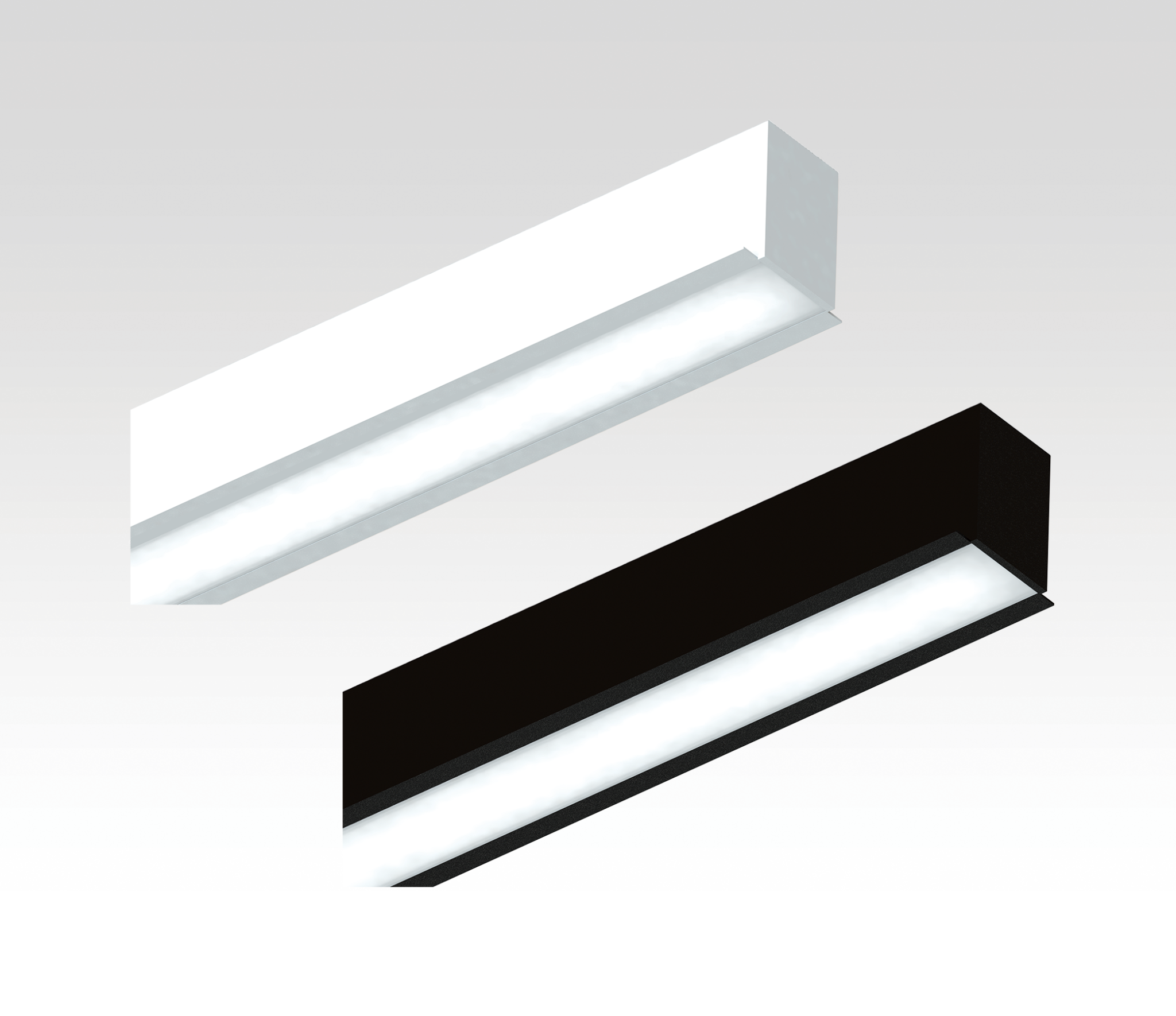

- The Razor series offers high-efficiency illumination with a sleek, modern design.
- With superior lighting performance and versatile mounting options, it adapts to various applications.
- Dimming controls provide flexibility and enhanced user experience.
- A long lifespan ensures reliable and customizable lighting solutions.
IP
20
Flicker
Free
DALI
2
Luminaire Specification
Model502
CCT2700 / 3000 / 3500 / 4000 / 5000
Beam Angle100°
CRI80 / 90
Lifetime50,000 hrs
ControlPhase Cut / 0-10V / DALI / Casambi
IP Rating20

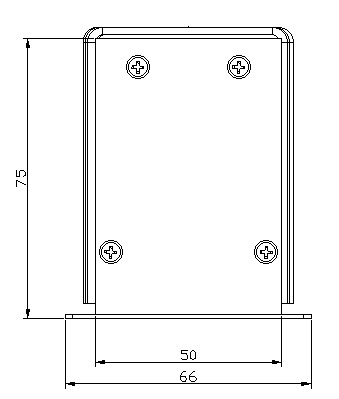

Dimension (mm)66(W) x 75(H)
FinishWhite / Black / Natural Anodized
InstallationRecessed
Warranty5 years
Details
Datasheet| Product Code | Wattage (W) | Lumen Output (lm) | 光效 (lm/m) | CCT (K) | CRI | Downloads |
|---|---|---|---|---|---|---|
| 502-827 | 24 | 2599 | 108.3 | 2700 | 80 | IES |
| 502-830 | 24 | 2722 | 113.4 | 3000 | 80 | IES |
| 502-835 | 24 | 2800 | 116.7 | *3500 | 80 | IES |
| 502-840 | 24 | 2878 | 119.9 | 4000 | 80 | IES |
| 502-850 | 24 | 2878 | 119.9 | *5000 | 80 | IES |
| 502-927 | 26.8 | 2686 | 100.4 | 2700 | 90 | IES |
| 502-930 | 26.8 | 2773 | 103.6 | 3000 | 90 | IES |
| 502-935 | 26.8 | 2843 | 106.2 | *3500 | 90 | IES |
| 502-940 | 26.8 | 2878 | 107.5 | 4000 | 90 | IES |
| 502-950 | 26.8 | 2878 | 107.5 | *5000 | 90 | IES |
* Special Order
Customization Support
We support multi-dimensional customization including power, color temperature, length, and dimming protocols. Welcome to inquire.
