501-S-LG
APPLICATIONS: Commercial | Retail | Residential

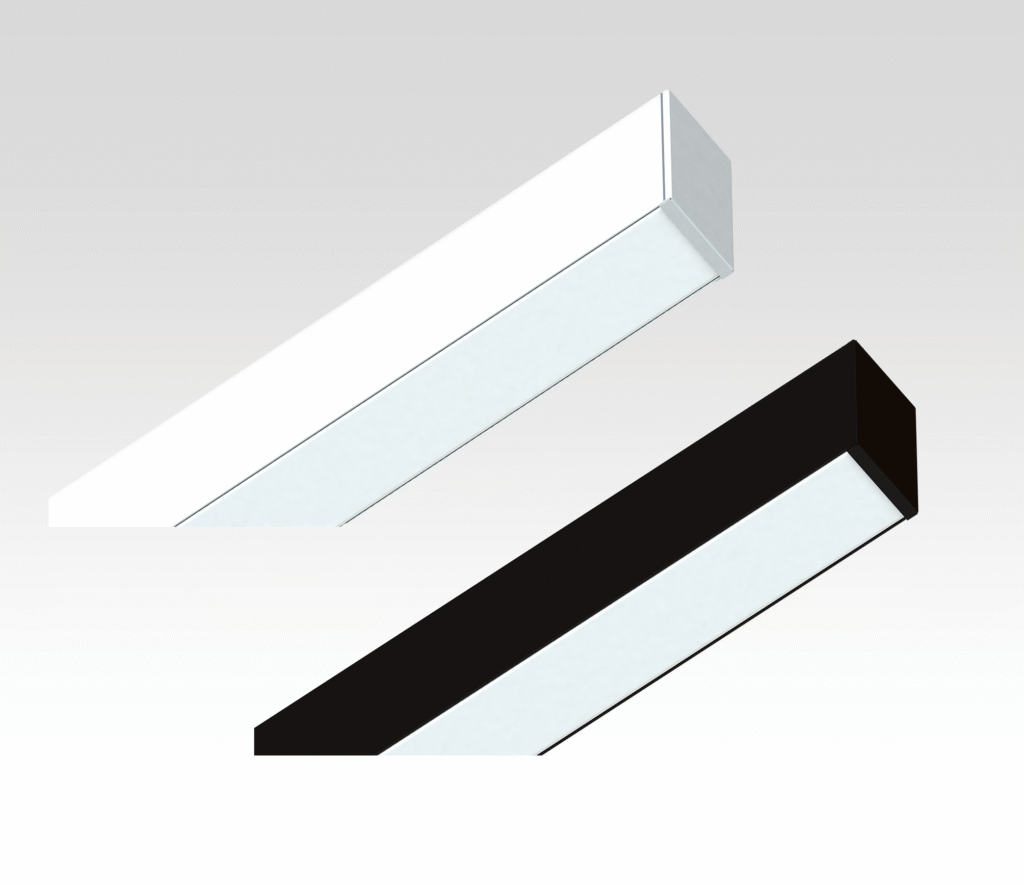

- The Razor series offers high-efficiency illumination with a sleek, modern design.
- With superior lighting performance and versatile mounting options, it adapts to various applications.
- Dimming controls provide flexibility and enhanced user experience.
- A long lifespan ensures reliable and customizable lighting solutions.
IK
08
IP
20/65
UGR
<19
Flicker
Free
DALI
2
Luminaire Specification
Model501-S-LG
CCT2700 / 3000 / 3500 / 4000 / 5000
Beam Angle75°
CRI80 / 90
Lifetime50,000 hrs
ControlPhase Cut / 0-10V / DALI / Casambi
IP Rating20 / 65

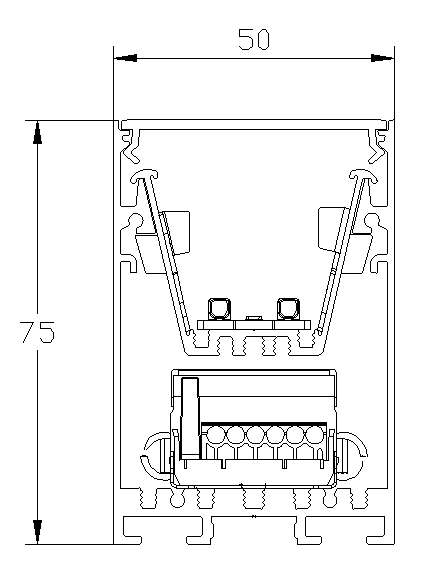

Dimension (mm)50(W) x 75(H)
IK Rating08
FinishWhite / Black / Natural Anodized
InstallationSurface Mounted
Warranty5 years
Details
Datasheet| Product Code | Wattage (W) | Lumen Output (lm) | 光效 (lm/m) | CCT (K) | CRI | Downloads |
|---|---|---|---|---|---|---|
| 501L827 | 24.3 | 2192 | 90.2 | 2700 | 80 | IES |
| 501L830 | 24.3 | 2295 | 94.4 | 3000 | 80 | IES |
| 501L835 | 24.3 | 2361 | 97.2 | *3500 | 80 | IES |
| 501L840 | 24.3 | 2427 | 99.9 | 4000 | 80 | IES |
| 501L850 | 24.3 | 2427 | 99.9 | *5000 | 80 | IES |
| 501L927 | 27.1 | 2265 | 83.6 | 2700 | 90 | IES |
| 501L930 | 27.1 | 2339 | 86.3 | 3000 | 90 | IES |
| 501L935 | 27.1 | 2398 | 88.5 | *3500 | 90 | IES |
| 501L940 | 27.1 | 2427 | 89.6 | 4000 | 90 | IES |
| 501L950 | 27.1 | 2427 | 89.6 | *5000 | 90 | IES |
* Special Order
Customization Support
We support multi-dimensional customization including power, color temperature, length, and dimming protocols. Welcome to inquire.
