901-P
APPLICATIONS: Commercial | Retail | Residential

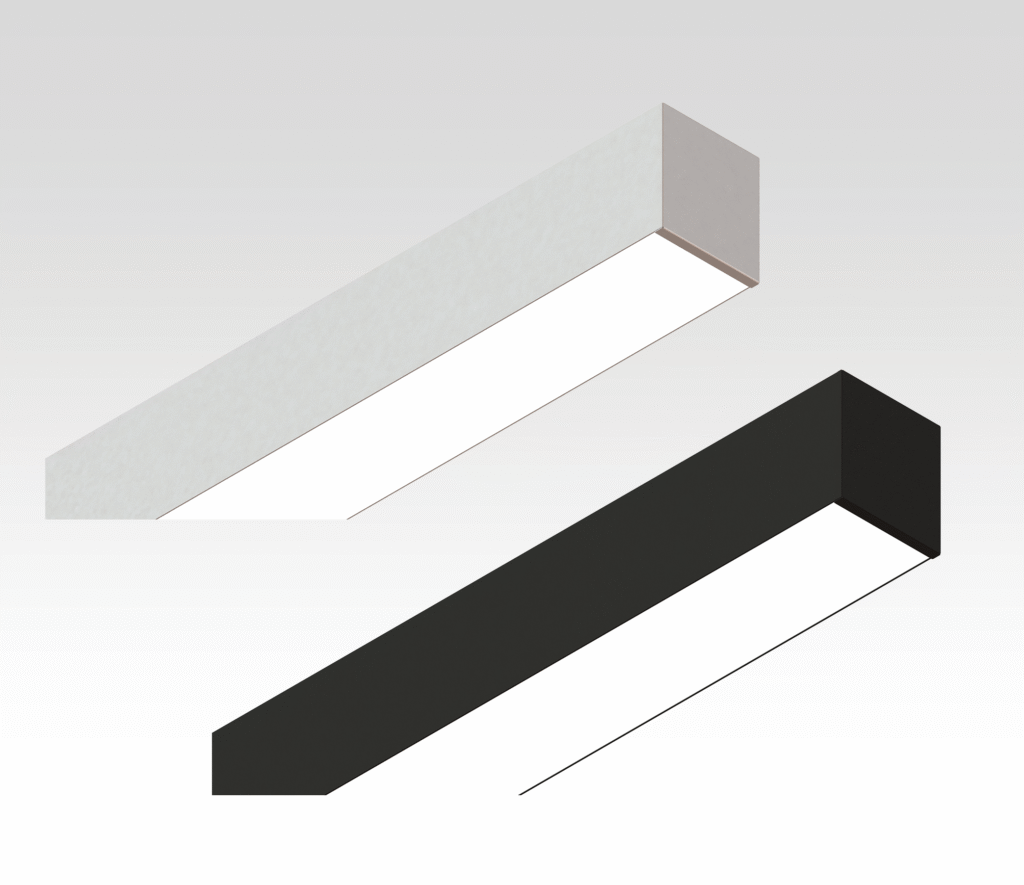

- The Razor series offers high-efficiency illumination with a sleek, modern design.
- With superior lighting performance and versatile mounting options, it adapts to various applications.
- Dimming controls provide flexibility and enhanced user experience.
- A long lifespan ensures reliable and customizable lighting solutions.
IP
20
Flicker
Free
DALI
2
Luminaire Specification
Model901-P
CCT2700 / 3000 / 3500 / 4000 / 5000
Beam Angle105°
CRI80 / 90
Lifetime50,000 hrs
ControlPhase Cut / 0-10V / DALI / Casambi
IP Rating20

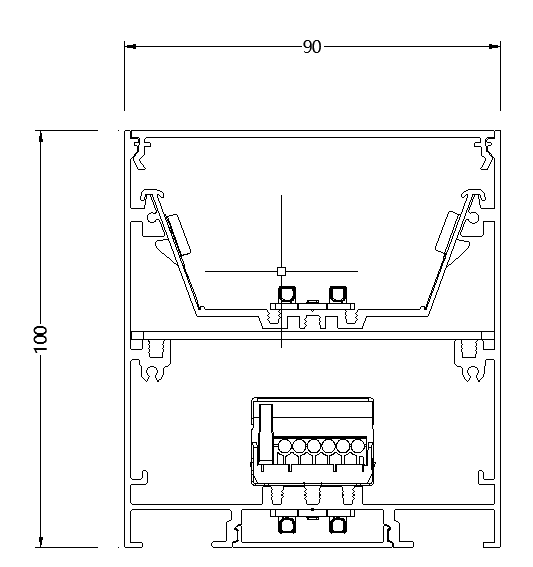

Dimension90(W) x 100(H)
FinishWhite / Black
InstallationSuspended
Warranty5 years
Details
Datasheet| Product Code | Wattage (W) | Lumen Output (lm) | 光效 (lm/m) | CCT (K) | CRI | Downloads |
|---|---|---|---|---|---|---|
| 901P827 | 24.4 | 2480 | 101.6 | 2700 | 80 | IES |
| 901P830 | 24.4 | 2597 | 106.4 | 3000 | 80 | IES |
| 901P835 | 24.4 | 2671 | 109.5 | *3500 | 80 | IES |
| 901P840 | 24.4 | 2746 | 112.5 | 4000 | 80 | IES |
| 901P850 | 24.4 | 2746 | 112.5 | *5000 | 80 | IES |
| 901P927 | 27.2 | 2563 | 94.2 | 2700 | 90 | IES |
| 901P930 | 27.2 | 2646 | 97.3 | 3000 | 90 | IES |
| 901P935 | 27.2 | 2713 | 99.7 | *3500 | 90 | IES |
| 901P940 | 27.2 | 2746 | 100.9 | 4000 | 90 | IES |
| 901P950 | 27.2 | 2746 | 100.9 | *5000 | 90 | IES |
* Special Order
Customization Support
We support multi-dimensional customization including power, color temperature, length, and dimming protocols. Welcome to inquire.
